Product List
Allen-Bradley

MicroLogix Family Overview

CPU

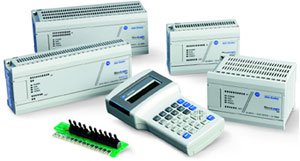

1761 MicroLogix 1000 Controllers


Model Description
1761-L10BWA 6 inputs , 4 contact outputs, 24V DC sink/source
1761-L10BWB 6 inputs , 4 contact outputs, 24V DC sink/source
1761-L10BXB 6 input s24V DC sink/source,2 contact outputs, 2 source 24V DC outputs
1761-L16AWA 10 inputs,120 v ac, 6 contact outputs
1761-L32AWA 20 inputs 120 vac, 12 contact output
1761-L16BWA 10 inputs, 24V DC sink/source, 6contact outputs
1761-L16NWA 10 inputs, 24V DC sink/source or 24 vac , 6contact outputs
1761-L32BWA 20 inputs,24V DC sink/source,12 contact outputs
1761-L32AAA 20 inputs  120 vac  10 triAC outputs, 120/240V AC 2 contact outputs
1761-L16BWB 10 inputs 24V DC sink/source 6 contact outputs
1761-L16NWB 10 inputs 24V DC sink/source or 24 vac
1761-L32BWB 20 inputs 24V DC sink/source 12 contact outputs
1761-L16BBB 10 inputs 24V DC sink/source, 4 source 24V DC outputs, 2 contact outputs
1761-L32BBB 20 inputs 24V DC sink/source 10 source ,24V DC outputs, 2 contact outputs
1761-L20AWA-5A 12 inputs 120 v ac, 8 contact outputs
1761-L20BWA-5A 12 inputs 24V DC sink/source ,8 contact outputs
1761-L20BWB-5A 12 inputs 24V DC sink/source, 8 contact outputs


1763 MicroLogix 1100 Controllers


Model Description
1763-L16AWA (10) 120v ac (2) analog voltage (6) individually  lsolated relay
1763-L16BWA (10) 24V DC IN, (6) RELAY OUT, 2 AI(0-10V), AC POWER
1763-L16BBB (10) 24V DC IN, (6) RELAY OUT, 2 AI(0-10V), 24 vdc

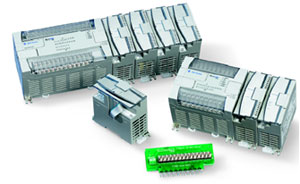

1762 MicroLogix 1200 Controllers

Model Description
1762-L24BWA 10) Standard 24V DC
1762-L24BWAR (4) Fast 24V DC (10) Relay
1762-L40BWA (20) Standard 24V DC
1762-L40BWAR (4) Fast 24V DC (16) Relay
1762-L24BXB (10) Standard 24V DC (4) Fast 24V DC
1762-L24BXBR (5) Relay (4) Standard 24V DC FET (1) Fast 24V DC FET
1762-L40BXB (20) Standard 24V DC  (4) Fast 24V DC
1762-L40BXBR (8) Relay  (7) Standard 24V DC FET  (1) Fast 24V DC FET
1762-L24AWA (14) 120V AC (10) Relay
1762-L24AWAR
1762-L40AWA (24) 120V AC (16) Relay
1762-L40AWAR


MicroLogix 1400 Controllers


Model Description
 1766-L32BWA   (12) Fast 24V DC  (8) Normal 24V DC  (12) Relay
 1766-L32AWA   (20) 120V AC (12) Relay
 1766-L32BXB   (12) Fast 24V DC (8) Normal 24V DC (6) Relay (3) Fast 24V DC (3) Normal 24V DC
 1766-L32BWAA   (12) Fast 24V DC (8) Normal 24V DC (12) Relay
 1766-L32AWAA   (20) 120V AC (12) Relay
 1766-L32BXBA   (12) Fast 24V DC (8) Normal 24V DC (6) Relay (3) Fast 24V DC (3) Normal 24V DC

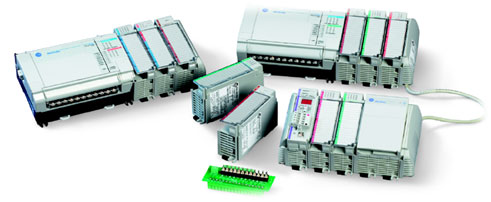

MicroLogix 1500

MicroLogix 1500 Base Units

Model Description
1764-24AWA (12) 120V AC (12) Relay, 2 isolated relays per unit
1764-24BWA (8) Standard 24V DC (4) Fast 24V DC (12) Relay, 2 isolated relays per unit
1764-28BXB (8) Standard 24V DC (8) Fast 24V DC (6) Relay, 2 isolated relays per unit
  (4) Standard 24V DC FET (2) Fast 24V DC FET

MicroLogix 1500 Processors

Model Description
1764-LSP One non-isolated RS-232-C port with DF1 full duplex, DF1 half duplex, ASCII, Modbus, and DH-485 protocols  7.65K user words¬ , user-configurable program and memory amounts
1764-LRP 14K user words¬ , user-configurable program and memory amounts One non-isolated RS-232-C port and one isolated RS-232-C port, each with DF1 full duplex, DF1 half duplex, ASCII, Modbus, and DH-485 protocols

Expansion I/O 1100/1200/1400

Model Description
 1762-IA8    8-Point 120V AC Input Module
 1762-IF2OF2    Combination 2-Channel Input 2-Channel Output Voltage/Current Analog
 1762-IF4    4-Channel Voltage/Current Analog Input Module
 1762-IQ16    16-Point Sink/Source 24V DC Input Module
 1762-IQ8    8-Point Sink/Source 24V DC Input Module
 1762-IQ8OW6    8 Point Sink/Source 24V DC Input/6-Point AC/DC Relay Output Combination
 1762-IR4    4-Channel RTD/Resistance Input Module
 1762-IT4    4-Channel Thermocouple/mV Input Module
 1762-OA8    8-Point 120/240V AC Triac Output Module
 1762-OB16    16-Point Sourcing 24V DC Output Module
 1762-OB8    8-Point Sourcing 24V DC Output Module
 1762-OF4    4-Channel Voltage/Current Analog Output Module
 1762-OW16    16-Point AC/DC Relay Output Module
 1762-OW8    8-Point AC/DC Relay Output Module
 1762-OX6I    6-Point Isolated AC/DC Relay Output Module

Communication Interface Devices

Model Description
 1761-NET-DNI    MicroLogix DeviceNet Interface Module
 1761-NET-ENI    MicroLogix Ethernet/IP Interface Module
 1761-NET-ENIW    MicroLogix Ethernet/IP Interface Module with Web Server Functionality
1761-NET-AIC AIC+ advanced interface converter
1761-NET-ENI, 1761-NET-ENIW Ethernet interface, Web-enabled Ethernet interface

Accessories

Model Description
1762-MM1RTC MEMORY MODULE WITH RTC
1762-RTC Real-Time Clock Module
1762-MM1 Memory Module
1766-MM1 MEMORY MODULE FOR ML 1400
1747-PSD Program Storage Device
Store and retrieve a single program. Compatible with MicroLogix 1000, 1100, 1200, and 1500 controllers
1747-BA  Lithium Battery (For RAM Memory Retention) MicroLogix 1400/1500 controllers
1761-CBL-PM02  RS-232 Operating/Programming Cable, 8-Pin Mini DIN to 9-Pin D
   Shell (MicroLogix), 2 m (6.5 ft)
1763-NC01 RS-485 cable. 30 cm, 8-pin mini DIN to 6-pin terminal block
1763-BA Replacement battery

Ordering
1761 MicroLogix 1000 Controllers
1761-L10BWA 6 inputs , 4 contact outputs, 24V DC sink/source
1761-L10BWB 6 inputs , 4 contact outputs, 24V DC sink/source
1761-L10BXB 6 input s24V DC sink/source,2 contact outputs, 2 source 24V DC outputs
1761-L16AWA 10 inputs,120 v ac, 6 contact outputs
1761-L32AWA 20 inputs 120 vac, 12 contact output
1761-L16BWA 10 inputs, 24V DC sink/source, 6contact outputs
1761-L16NWA 10 inputs, 24V DC sink/source or 24 vac , 6contact outputs
1761-L32BWA 20 inputs,24V DC sink/source,12 contact outputs
1761-L32AAA 20 inputs  120 vac  10 triAC outputs, 120/240V AC 2 contact outputs
1761-L16BWB 10 inputs 24V DC sink/source 6 contact outputs
1761-L16NWB 10 inputs 24V DC sink/source or 24 vac
1761-L32BWB 20 inputs 24V DC sink/source 12 contact outputs
1761-L16BBB 10 inputs 24V DC sink/source, 4 source 24V DC outputs, 2 contact outputs
1761-L32BBB 20 inputs 24V DC sink/source 10 source ,24V DC outputs, 2 contact outputs
1761-L20AWA-5A 12 inputs 120 v ac, 8 contact outputs
1761-L20BWA-5A 12 inputs 24V DC sink/source ,8 contact outputs
1761-L20BWB-5A 12 inputs 24V DC sink/source, 8 contact outputs
1763 MicroLogix 1100 Controllers
1763-L16AWA (10) 120v ac (2) analog voltage (6) individually  lsolated relay
1763-L16BWA (10) 24V DC IN, (6) RELAY OUT, 2 AI(0-10V), AC POWER
1763-L16BBB (10) 24V DC IN, (6) RELAY OUT, 2 AI(0-10V), 24 vdc
1762 MicroLogix 1200 Controllers
1762-L24BWA 10) Standard 24V DC
1762-L24BWAR (4) Fast 24V DC (10) Relay
1762-L40BWA (20) Standard 24V DC
1762-L40BWAR (4) Fast 24V DC (16) Relay
1762-L24BXB (10) Standard 24V DC (4) Fast 24V DC
1762-L24BXBR (5) Relay (4) Standard 24V DC FET (1) Fast 24V DC FET
1762-L40BXB (20) Standard 24V DC  (4) Fast 24V DC
1762-L40BXBR (8) Relay  (7) Standard 24V DC FET  (1) Fast 24V DC FET
1762-L24AWA (14) 120V AC (10) Relay
1762-L24AWAR
1762-L40AWA (24) 120V AC (16) Relay
1762-L40AWAR
MicroLogix 1400 Controllers
 1766-L32BWA   (12) Fast 24V DC  (8) Normal 24V DC  (12) Relay
 1766-L32AWA   (20) 120V AC (12) Relay
 1766-L32BXB   (12) Fast 24V DC (8) Normal 24V DC (6) Relay (3) Fast 24V DC (3) Normal 24V DC
 1766-L32BWAA   (12) Fast 24V DC (8) Normal 24V DC (12) Relay
 1766-L32AWAA   (20) 120V AC (12) Relay
 1766-L32BXBA   (12) Fast 24V DC (8) Normal 24V DC (6) Relay (3) Fast 24V DC (3) Normal 24V DC
MicroLogix 1500 Base Units
1764-24AWA (12) 120V AC (12) Relay, 2 isolated relays per unit
1764-24BWA (8) Standard 24V DC (4) Fast 24V DC (12) Relay, 2 isolated relays per unit
1764-28BXB (8) Standard 24V DC (8) Fast 24V DC (6) Relay, 2 isolated relays per unit
  (4) Standard 24V DC FET (2) Fast 24V DC FET
MicroLogix 1500 Processors
1764-LSP One non-isolated RS-232-C port with DF1 full duplex, DF1 half duplex, ASCII, Modbus, and DH-485 protocols  7.65K
  user words , user-configurable program and memory amounts
1764-LRP 14K user words , user-configurable program and memory amounts One non-isolated RS-232-C port and one isolated RS-232-C port, DH-485 protocols
  each with DF1 full duplex, DF1 half duplex, ASCII, Modbus, and
Expansion I/O 1100/1200/1400
 1762-IA8    8-Point 120V AC Input Module
 1762-IF2OF2    Combination 2-Channel Input 2-Channel Output Voltage/Current Analog
 1762-IF4    4-Channel Voltage/Current Analog Input Module
 1762-IQ16    16-Point Sink/Source 24V DC Input Module
 1762-IQ8    8-Point Sink/Source 24V DC Input Module
 1762-IQ8OW6    8 Point Sink/Source 24V DC Input/6-Point AC/DC Relay Output Combination
 1762-IR4    4-Channel RTD/Resistance Input Module
 1762-IT4    4-Channel Thermocouple/mV Input Module
 1762-OA8    8-Point 120/240V AC Triac Output Module
 1762-OB16    16-Point Sourcing 24V DC Output Module
 1762-OB8    8-Point Sourcing 24V DC Output Module
 1762-OF4    4-Channel Voltage/Current Analog Output Module
 1762-OW16    16-Point AC/DC Relay Output Module
 1762-OW8    8-Point AC/DC Relay Output Module
 1762-OX6I    6-Point Isolated AC/DC Relay Output Module
 Communication Interface Devices
 1761-NET-DNI    MicroLogix DeviceNet Interface Module
 1761-NET-ENI    MicroLogix Ethernet/IP Interface Module
 1761-NET-ENIW    MicroLogix Ethernet/IP Interface Module with Web Server Functionality
1761-NET-AIC AIC+ advanced interface converter
1761-NET-ENI, 1761-NET-ENIW Ethernet interface, Web-enabled Ethernet interface
Accessories
1762-MM1RTC MEMORY MODULE WITH RTC
1762-RTC Real-Time Clock Module
1762-MM1 Memory Module
1766-MM1 MEMORY MODULE FOR ML 1400
1747-PSD Program Storage Device Store and retrieve a single program. Compatible with MicroLogix 1000, 1100, 1200, and 1500 controllers
1747-BA  Lithium Battery (For RAM Memory Retention) MicroLogix 1400/1500 controllers
1761-CBL-PM02  RS-232 Operating/Programming Cable, 8-Pin Mini DIN to 9-Pin D
1763-NC01 RS-485 cable. 30 cm, 8-pin mini DIN to 6-pin terminal block
1763-BA Replacement battery
