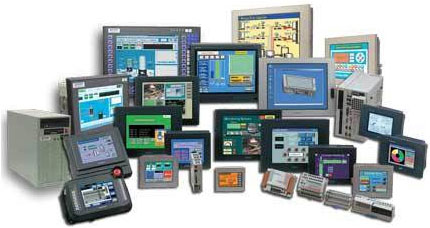

Advanced Programmable Terminals HMIs Navigate All Areas of Machine Operation, From Daily Operation to Error Recovery
NS-Series caters for all your application needs!

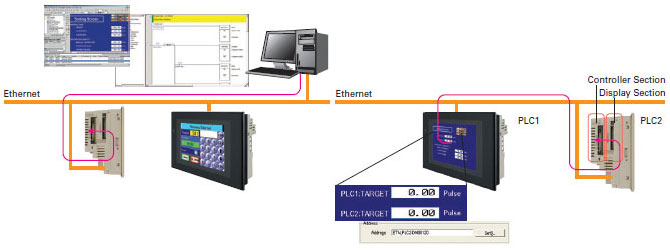

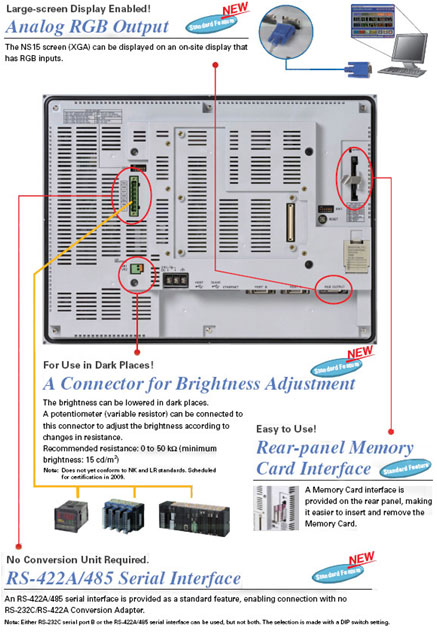

Enhanced networking features, image progress, easy configuration and libraries allow users to create interfacing screen in no time, thus cutting man-hour cost. |
|
| |
|
|
| |
| Models Available |
| TYPE |
NS15-V2 |
NS12-V2 |
NS10-V2 |
NS8-V2 |
NS5-V2 |
NS5-V2 |
 |
 |
 |
 |
 |
 |
| Dimensions |
405 304 70 mm |
315 x 241 x 48.5 mm |
232 x 177 x 48.5 mm |
195 x142 x54 mm |
| Effective display area |
15 inch |
12.1 inch |
10.4 inch |
8 inch |
5.7 inch |
| Display device |
TFT |
STN/TFT |
Monochrome STN |
| Number of dots |
1024 x 768 dots |
800 x 600 dots |
640 x 480 dots |
320 x 240 dots |
| Display color |
256 colors |
16 shades of gray |
| BMP/JPEG Display |
32,768 color |
4,096 / 32,768 colors |
- |
| Color Video Display |
260,000 colors |
- |
- |
| Color |
60 Mbytes |
| Screen Capacity |
| USB Port |
○ |
○ |
○ |
○ |
○ |
○ |
| Memory Card |
○ |
○ |
○ |
○ |
○ |
○ |
| Ladder Monitor function |
○ |
○ |
○ |
○ |
- |
- |
| Video Input Unit support |
○ |
○ |
○ |
○ |
- |
- |
| Control Link |
○ |
○ |
○ |
- |
- |
- |
| Interface Unit Support |
| PictBridge |
○ |
○ |
○ |
○ |
○ (see note) |
○ (see note) |
|
| |
|
|
|
|
| |
| ORDERING |
|
| 5.7-inch |
| NS5-MQ10-V2 |
5.7-inch,STN monochrome,Ivory |
| NS5-MQ10B-V2 |
5.7-inch,STN monochrome,Black |
| NS5-MQ11-V2 |
5.7-inch,STN monochrome ,Ivory,Ethernet |
| NS5-MQ11B-V2 |
5.7-inch,STN monochrome ,Black,Ethernet |
| 5.7-inch |
| NS5-SQ10-V2 |
5.7-inch,STN,COLOR,Ivory |
| NS5-SQ10B-V2 |
5.7-inch,STN,COLOR,BLACK |
| NS5-SQ11-V2 |
5.7-inch,STN,COLOR,Ivory,Ethernet |
| NS5-SQ11B-V2 |
5.7-inch,STN,COLOR,BLACK,Ethernet |
| NS5-TQ10-V2 |
5.7-inch,STN,COLOR,Ivory |
| NS5-TQ10B-V2 |
5.7-inch,STN,COLOR,BLACK |
| NS5-TQ11-V2 |
5.7-inch,STN,COLOR,Ivory,Ethernet |
| NS5-TQ11B-V2 |
5.7-inch,STN,COLOR,BLACK,Ethernet |
| 8.4-inch |
| NS8-TV00-V2 |
8.4-inch,STN,COLOR,Ivory |
| NS8-TV00B-V2 |
8.4-inch,STN,COLOR,BLACK |
| NS8-TV01-V2 |
8.4-inch,STN,COLOR,Ivory,Ethernet |
| NS8-TV01B-V2 |
8.4-inch,STN,COLOR,BLACK,Ethernet |
| 10.4-inch |
| NS10-TV00-V2 |
10.4-inch,STN,COLOR,Ivory |
| NS10-TV00B-V2 |
10.4-inch,STN,COLOR,BLACK |
| NS10-TV01-V2 |
10.4-inch,STN,COLOR,Ivory,Ethernet |
| NS10-TV01B-V2 |
10.4-inch,STN,COLOR,BLACK,Ethernet |
| 12.1-inch |
| NS12-TS00-V2 |
12.1-inch,STN,COLOR,Ivory |
| NS12-TS00B-V2 |
12.1-inch,STN,COLOR,BLACK |
| NS12-TS01-V2 |
12.1-inch,STN,COLOR,Ivory,Ethernet |
| NS12-TS01B-V2 |
12.1-inch,STN,COLOR,BLACK,Ethernet |
| 15 -inch |
| NS15-TS00-V2 |
15 -inch,STN,COLOR,Ivory |
| NS15-TS00B-V2 |
15 -inch,STN,COLOR,BLACK |
| NS15-TS01-V2 |
15 -inch,STN,COLOR,Ivory,Ethernet |
| NS15-TS01B-V2 |
15 -inch,STN,COLOR,BLACK,Ethernet |
| Cable |
| XW2Z-200T |
NS-series PT Connecting |
| XW2Z-500T |
5M |
| NSH5 Cables |
| NSH5-422CW-10M |
10M |
| NSH5-232CW-3M |
3M |
|
| |
|
