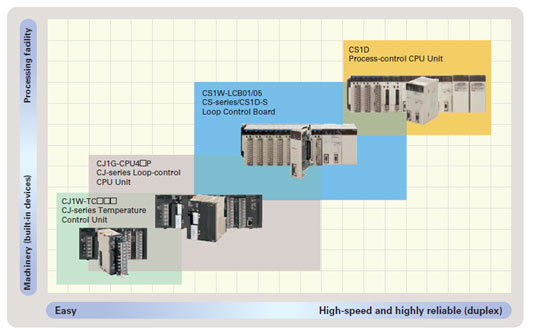

| Compact CJ-series Loop-control CPU Units ideal for equipment built-in controller applications have been added to the series, further expanding the selection to suit the application. |
| |
| |
CS1D-H CPU Unit Single CPU Systems) |
Process-control CPU Unit |
CS1D-H CPU Unit |
| CS1D-CPU42S |
CS1D-CPU44S |
CS1D-CPU65S |
CS1D-CPU67S |
CS1D-CPU65P |
CS1D-CPU67P |
CS1D-CPU65H |
CS1D-CPU67H |
 |
|
|
|
 |
|
|
|
| CPU Unit duplexing |
Cannot be duplexed |
Can be duplexed. |
| Number of I/O points |
960 points |
1,280 points |
5,120 points |
Number of Expansion
Racks |
2 max. |
3 max. |
7 max. |
| User program capacity |
10 Ksteps |
30 Ksteps |
60 Ksteps |
250 Ksteps |
60 Ksteps |
250 Ksteps |
60 Ksteps |
250 Ksteps |
| Data memory |
64 Kwords |
64 Kwords |
128 Kwords |
448 Kwords |
128 Kwords |
448 Kwords |
128 Kwords |
448 Kwords |
LD instruction execution
time |
0.04 μs |
0.02 μs |
| Interrupt functions |
Can be used. |
Cannot be used. |
| Loop control functions |
Yes, when a Loop Control Board is installed |
Yes (Can be duplexed.) |
None |
Current
consumption(5 V) |
0.78 |
0.78 |
0.82 |
0.82 |
1.04 |
1.04 |
0.82 |
0.82 |
|
| |
| Basic I/O Units |
| |
| |
DIGITAL INPUT UNIT |
| MODEL |
INPUT |
VOLTAGE AND CURRENT |
| CS1W-ID211 |
 |
16 |
24 VDC, 7mA |
| CS1W-ID231 |
|
32 |
24 VDC, 6mA |
| CS1W-ID261 |
 |
64 |
24 VDC, 6mA |
| CS1W-ID291 |
 |
96 |
24 VDC, 5mA approx. |
| CS1W-IA111 |
|
16 |
100 to 120 V AC, 100 to 120 V DC, |
| CS1W-IA211 |
|
16 |
100 to 120 V AC, 100 to 120 V DC, |
| CS1W-INT01 |
|
16 |
200 - 240 VAC 10mA |
| CS1W-IDP01 |
|
16 |
200 to 240 V AC, |
|
| |
| TYPE |
DIGITAL OUTPUT UNIT |
| MODEL |
OUTPUT |
VOLTAGE AND CURRENT |
Output TYPE |
| CS1W-OC201 |
 |
8 |
250 VAC/24 VDC ,2A |
Relay |
| CS1W-OC211 |
|
16 |
251 VAC/24 VDC ,2A |
Relay |
| CS1W-OD211 |
|
16 |
12 to 24 V DC, 0.5 A, |
Transistor sinking outputs |
| CS1W-OD212 |
|
16 |
12 to 24 V DC, 0.5 A, |
Transistor sourcing outputs |
| CS1W-OD231 |
 |
32 |
12 to 24 V DC, 0.5 A, |
Transistor sinking outputs |
| CS1W-OD232 |
|
32 |
12 to 24 V DC, 0.5 A, |
Transistor sourcing outputs |
| CS1W-OD261 |
|
64 |
12 to 24 V DC, 0.3 A, |
Transistor sinking outputs |
| CS1W-OD262 |
|
64 |
12 to 24 V DC, 0.3 A, |
Transistor sourcing outputs |
| CS1W-OD291 |
 |
96 |
12 to 24 V DC, 0.1 A, |
Transistor sinking outputs |
| CS1W-OD292 |
|
96 |
12 to 24 V DC, 0.1 A, |
Transistor sourcing outputs |
| CS1W-OA201 |
|
8 |
250 V AC, 1.2 A max., |
Triac |
| CS1W-OA211 |
|
16 |
250 V AC, 1.2 A max., |
Triac |
|
| |
| Analog Unit |
|
|
| TYPE |
ANALOG UNIT |
| MODEL |
INPUT |
OUTPUT |
SIGNAL RANG |
| CS1W-AD041-V1 |
 |
4 |
|
1 to 5 V, 0 to 5 V,
0 to 10 V, –10 to 10 V,
4 to 20 mA |
| CS1W-AD081-V1 |
|
8 |
|
| CS1W-AD161 |
|
16 |
|
| CS1W-DA041 |
|
|
4 |
| CS1W-DA08V |
|
|
8 |
1 to 5 V, 0 to 5 V,
0 to 10 V, –10 to 10 V |
| CS1W-DA08C |
|
|
8 |
4 to 20 mA |
| CS1W-MAD44 |
|
4 |
4 |
Input:
1 to 5 V, 0 to 5 V,
0 to 10 V, –10 to 10 V,
4 to 20 mA
Output:
1 to 5 V, 0 to 5 V, 0 to
10 V, –10 to 10 V |
|
| |
| Special I/O Units |
| |
| TYPE |
CS1W-SF200 |
CS1W-PTS |
CS1W-B7A |
CS1W-IDP01 |
CS1W-INT01 |
CS1W-CLK |
CS1W-RPT |
 |
|
|
|
|
|
|
| DISCEIPTION |
Safety Relay Unit,Emergency
stop Unit |
Temperature Sensor Input Units,Isolated-type
Thermocouple |
Interface Units |
High-speed Input |
Interrupt Input |
Controller Link,Data links and
message service |
Repeater Units enables T-branches and long-distance wiring for Wired Controller Link networks |
|
| |
| Communication Unit |
| |
| TYPE |
CS1W-V680C1 |
CS1W-CRM21 |
CS1W-FLN** |
CS1W-SLK** |
CS1WDRM21-V1 |
| |
 |
 |
 |
 |
 |
| DISCEIPTION |
ID Sensor,V680-series RFID system |
CompoNet Master,Word Slave Units:
1,024 inputs and 1,024 outputs (2,048 I/O
points total)
Bit Slave Units:
256 inputs and 256 outputs (512 I/O
points total) |
FL-net (OPCN-2)
Ver. 2
specifications
Data link and
message
communications
functions |
Data link and
message
communications
functions |
DeviceNet Remote I/O Master
communications
(Fixed or user-set
allocation |
|
| |
| ORDERING |
|
| CS1D-CPU42S |
CPU 10 Ksteps, 960 I/O Maximum 2 Racks |
| CS1D-CPU44S |
CPU 10 Ksteps, 1280 I/O Maximum 3 Racks |
| CS1D-CPU65S |
CPU 60 Ksteps, 5120 I/O Maximum 7 Racks |
| CS1D-CPU67S |
CPU 250 Ksteps, 5120 I/O Maximum 7 Racks |
| CS1D-CPU65P |
CPU 60 Ksteps, 5120 I/O Maximum 7 Racks |
| CS1D-CPU67P |
CPU 250 Ksteps, 5120 I/O Maximum 7 Racks |
| CS1D-CPU65H |
CPU 60 Ksteps, 5120 I/O Maximum 7 Racks |
| CS1D-CPU67H |
CPU 250 Ksteps, 5120 I/O Maximum 7 Racks |
| Digital input/output Unit |
| CS1W-ID211 |
Expantion 16DI 24 V DC, |
| CS1W-ID231 |
Expantion 32DI 24 V DC, |
| CS1W-ID261 |
Expantion 64DI 24 V DC, |
| CS1W-ID291 |
Expantion 96DI 24 V DC, |
| CS1W-IA111 |
Expantion 16DI,100 to 120 V AC, 100 to 120 V DC |
| CS1W-IA211 |
Expantion 16DI 200 to 240 V AC |
| CS1W-INT01 |
Expantion 16DI,Interrupt Input Unit |
| CS1W-IDP01 |
Expantion 16DI inputsInterrupt Input Unit High-speed |
| CS1W-OC201 |
Expantion 8DO Relay Output |
| CS1W-OC211 |
Expantion 16DO Relay Output |
| CS1W-OD211 |
Expantion 16DO Transistor sinking outputs |
| CS1W-OD212 |
Expantion 16DO Transistor sourcing outputs |
| CS1W-OD231 |
Expantion 32DO Transistor sinking outputs |
| CS1W-OD232 |
Expantion 32DO Transistor sourcing outputs |
| CS1W-OD261 |
Expantion 64DO Transistor sinking outputs |
| CS1W-OD262 |
Expantion 64DO Transistor sourcing outputs |
| CS1W-OD291 |
Expantion 96DO Transistor sinking outputs |
| CS1W-OD292 |
Expantion 96DO Transistor sourcing outputs |
| CS1W-OA201 |
Expantion 8DO Triac Output |
| CS1W-OA211 |
Expantion 16DO Triac Output |
| CS1W-MD262 |
Expantion 32DI/32DO 24 V DC, 0.3 A, sourcing outputs |
| CS1W-MD291 |
Expantion 48DI/48DO Transistor sinking outputs |
| CS1W-MD292 |
Expantion 48DI/48DO Transistor sourcing outputs |
| Analog Input/Output Unit |
| CS1W-AD041-V1 |
Expantion 4AI( 0 to 10 V, 4 to 20 mA) |
| CS1W-AD081-V1 |
Expantion 8AI( 0 to 10 V, 4 to 20 mA) |
| CS1W-AD161 |
Expantion 16AI( 0 to 10 V, 4 to 20 mA) |
| CS1W-DA041 |
Expantion 4AO( 0 to 10 V, 4 to 20 mA) |
| CS1W-DA08V |
Expantion 8AO( 0 to 10 V, 4 to 20 mA) |
| CS1W-DA08C |
Expantion 8AO( 4 to 20 mA), |
| CS1W-MAD44 |
Expantion 4AI/4AO( 0 to 10 V, 4 to 20 mA), |
| Isolated Unit |
| CS1W-PTS11 |
Expantion 4AI Thermocouple B, E, J, K, L, N, R,S, T, U, WRe5-26,PLII, ±100 mV |
| CS1W-PTS12 |
Expantion 4AI Pt100 Ω (JIS, IEC),JPt100 Ω, Pt50 Ω,Ni508.4 Ω |
| CS1W-PDC11 |
Expantion 4AI DC Input 4 to 20 mA, 0 to20 mA, 0 to 10 V,±10 V, 0 to 5 V,±5 V, 1 to 5 V,0 to 1.25 V,±1.25 V |
| CS1W-PTS51 |
Expantion 4AI ThermocoupleR, S, K, J, T, L, B |
| CS1W-PTS55 |
Expantion 8AI ThermocoupleR, S, K, J, T, L, B |
| CS1W-PTS52 |
Expantion 4AI Resistance Thermometer JPt100, Pt100 |
| CS1W-PTS56 |
Expantion 8AI Resistance Thermometer JPt100, Pt100 |
| CS1W-PDC55 |
Expantion 8DI DC Input4 to 20 mA, 0 to10 V,0 to 5 V, 1 to 5 V |
| CS1W-PTS01-V1 |
Expantion 4AI Thermocouple B, E, J, K, L, N, R,S, T, U,Variable range:±80 mV DC |
| CS1W-PTS02 |
Expantion 4AI Resistance ThermometerPt100 (JIS, IEC), JPt100 |
| CS1W-PTS03 |
Expantion 4AI Resistance Thermomete Standard accuracy: ±0.2% or ±0.2°C, |
| CS1W-PTW01 |
Expantion 4AI Resistance Thermomete Standard accuracy: ±0.2% or ±0.2°C,4 to 20 mA,1 to 5 V |
| CS1W-PDC01 |
Expantion 4AI Analog Input–10 to 10 V, 0 to10 V, –5 to 5 V, 0 to5 V, 1 to 5 V, ±10 VDC variable range,4 to 20 mA,0 to 20 mA |
| CS1W-PPS01 |
Expantion 4AI countingspeed:20 k pulses/s (voltageinput or novoltagesemiconductor input)20 pulses/s(contact inputantion 4 inputs) |
| CS1W-PMV01 |
Expantion 4AO 4 to 20 mA,1 to 5 V |
| CS1W-PMV02 |
Expantion 4AO 0 to 10 V,±10 V, 0 to 5 V,±5 V, 0 to 1 V, ±1 V |
| CS1W-PTR01 |
Expantion 8AI Power Transducer Input Unit±1 mA,0 to 1 mA |
| CS1W-PTR02 |
Expantion 8AI Analog Input Unit Unit±1 mA,0 to 1 mA |
| Serial Communications Unit |
| CS1W-SCU21-V1 |
Two RS-232C Ports |
| CS1W-SCU31-V1 |
Two RS-422A/485 ports |
| CS1W-SCB41-V1 |
1 × RS-232C port + 1 × RS-422/485 port, protocol macro function |
| CS1W-ETN21 |
Ethernet Unit |
| CS1D-ETN21D |
Ethernet Unit,supports duplex communications |
| CS1W-FLN22 |
FL-net Unit |
| CS1W-DRM21-V1 |
DeviceNet Unit |
| CS1W-CRM21 |
CompoNet Master Unit |
| Power Supply Units |
| CS1D-PD024 |
24 V DC, Output capacity: 4.6 A |
| CS1D-PD025 |
24 V DC, Output capacity: 5.3 A, |
| CS1D-PD0257 |
24 V DC, Output capacity: 6 A, |
| Flash memory, |
| HMC-EF183 |
128-MB compact flash card |
| HMC-EF283 |
256-MB compact flash card |
| HMC-EF583 |
512-MB compact flash card |
| Connector Cover |
| C500-COV01 |
Power Supply Unit connectors |
| CV500-COV01 |
I/O Unit connectors |
| CPU Bus Units |
| CS1W-CLK13 |
Wired Unit, shielded twisted-pair cable |
| CS1W-CLK23 |
Optical ring for H-PCF cable |
| CS1W-CLK53 |
Optical ring for GI cable |
| CS1W-SLK21 |
Coaxial cable |
| CS1W-SLK11 |
Optical cable |
| Programming Cables |
| CS1W-CN114 |
Connects the CQM1-PRO01-E Programming Console. (Length: 0.05 m) |
| CS1W-CN224 |
Connects the C200H-PRO27-E Programming Console. (Length: 2.0 m) |
| CS1W-CN624 |
Connects the C200H-PRO27-E Programming Console. (Length: 6.0 m) |
| CPU Backplanes |
| CS1W-BC023 |
2 slots (Does not connect to Expansion Rack.) |
| CS1W-BC033 |
3 slots |
| CS1W-BC053 |
5 slots |
| CS1W-BC083 |
8 slots |
| CS1W-BC103 |
10 slots |
|
|
