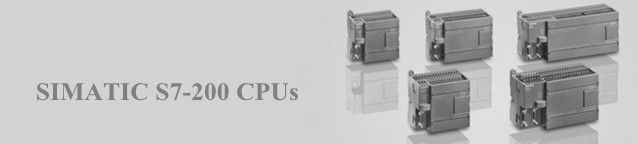

CPU 221
|
CPU 222
|
CPU 224
|
CPU 224 XP
CPU 224 XPsi |
CPU 226
|
|
 |
|
|
|
 |
|
| integrated |
4 KB
|
4 KB,
|
8/12 KB
|
12/16 KB
|
16/24 KB
|
| bit operations |
0.22 μs
|
0.22 μs
|
0.22 μs
|
0.22 μs
|
0.22 μs
|
| counters/times |
256/256
|
256/256
|
256/256
|
256/256
|
256/256
|
| Digital inputs |
6
|
8
|
14
|
14
|
14
|
| Digital Output |
4
|
6
|
10
|
10
|
10
|
| Analog Input |
|
|
|
2
|
|
| Analog Output |
|
|
|
1
|
|
| Dimensions |
90 x 80 x 62
|
90 x 80 x 62
|
120.5 x 80 x 62
|
140 x 80 x 62
|
196 x 80 x 62
|
| Interfaces |
|
MPI/DP
|
MPI/DP
|
MPI/ DP/PN
|
MPI/DP
|

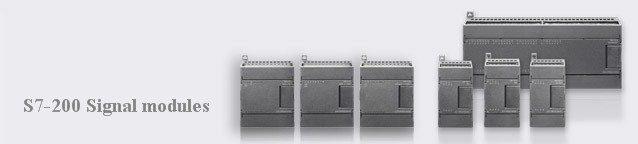

SIMATIC S7-200 Signal modules
SIMATIC S7-200 is designed as a consistently modular system. It provides you with a modular system with expansion modules which can be scaled to suit your requirements. There are expansion modules from 4/4 to 32/32 I/Os, analog modules from 4/0, 8/0, 0/4 up to 4/1 I/Os, as well as performance modules for switching loads: 5A DC or 10A relays

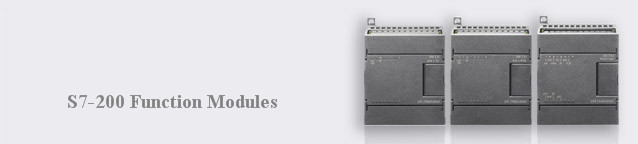

SIMATIC S7-200 Function modules
SIMATIC S7-200 has a consistently modular design. In addition to expansion and communication modules, the modular system provides a range of specific expansions for positioning., weighing technology and temperature measurement.

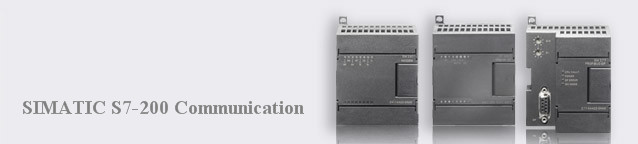

The SIMATIC S7-200 Micro PLC provides a full range of communication capabilities.
The integrated RS485 interfaces can be operated at data transmission rates from 1.2 to 187.5 kbaud:
l As system bus with up to 126 participants: Programming devices, SIMATIC HMI products and CPUs can be networked without a hitch. In pure S7-200 networks this is accomplished with the integrated PPI protocol. In a network composed of Totally Integrated Automation components, such as SIMATIC S7-300/400 or SIMATIC HMI, the S7-200 CPUs are integrated as MPI slaves.
l In the freely programmable mode up to 115.2 kbaud, with user-specific protocols such as ASCII (this supports interconnections with a modem, printer, barcode reader, PC, third-party PLC and any other device). Up to 32 SIEMENS frequency converters can be controlled without additional hardware by using USS protocol instructions.
A connection to a Modbus RTU network can be established via the Modbus protocol instructions.
|
ORDERING |
|
|
CPU |
|
|
6ES7 211-0AA23-0XB0 |
CPU 221 DC/DC/DC (not expandable) |
|
6ES7 211-0BA23-0XB0 |
CPU 221 AC/DC/relay (not expandable) |
|
6ES7 212-1AB23-0XB0 |
CPU 222 DC/DC/DC |
|
6ES7 212-1BB23-0XB0 |
CPU 222 AC/DC/relay |
|
6ES7 214-1AD23-0XB0 |
CPU 224 DC/DC/DC |
|
6ES7 214-1BD23-0XB0 |
CPU 224 AC/DC/relay |
|
6ES7 214-2AD23-0XB0 |
CPU 224XP DC/DC/DC |
|
6ES7 214-2BD23-0XB0 |
CPU 224XP AC/DC/relay |
|
6ES7 214-2AS23-0XB0 |
CPU 224XPsi DC/DC/DC (current-sinking digital outputs) |
|
6ES7 216-2AD23-0XB0 |
CPU 226 DC/DC/DC |
|
6ES7 216-2BD23-0XB0 |
CPU 226 AC/DC/relay |
|
Digital modules |
|
|
6ES7 221-1BF22-0XA0 |
Expension 8 DI 24 V DC |
|
6ES7 221-1EF22-0XA0 |
Expension 8 DI 120/230 V |
|
6ES7 221-1BH22-0XA0 |
Expension 16 DI 24 V DC |
|
6ES7 222-1BF22-0XA0 |
Expension 8 DO 24 V DC |
|
6ES7 222-1HF22-0XA0 |
Expension 8DO relay |
|
6ES7 222-1EF22-0XA0 |
Expension 8DO |
|
6ES7 222-1BD22-0XA0 |
Expension 4 x DO 24 V DC 5 A |
|
6ES7 222-1HD22-0XA0 |
Expension 4 x DO relay 10 A |
|
6ES7 223-1BF22-0XA0 |
Expension 4DI,4DO |
|
6ES7 223-1HF22-0XA0 |
Expension 4DI,4DO relay |
|
6ES7 223-1BH22-0XA0 |
Expension 4DI,4DO relay |
|
6ES7 223-1PH22-0XA0 |
Expension 4DI,4DO relay |
|
6ES7 223-1BL22-0XA0 |
Expension16DI,16DO |
|
6ES7 223-1PL22-0XA0 |
Expension 16DI,16DO relay |
|
6ES7 223-1BM22-0XA0 |
Expensionl 32 x DI,32 DO |
|
6ES7 223-1PM22-0XA0 |
Expension 32DI,32DO relay |
|
Analog modules |
|
|
6ES7 231-0HC22-0XA0 |
Expension 4 AI |
|
6ES7 231-0HF22-0XA0 |
Expension 8 AI |
|
6ES7 232-0HB22-0XA0 |
Expension 2 AO |
|
6ES7 232-0HD22-0XA0 |
Expension 4 AO |
|
6ES7 235-0KD22-0XA0 |
Expension 4 AI/1 AO |
|
Communication |
|
|
6ES7 277-0AA22-0XA0 |
EM 277 Communication PROFIBUS DP slave |
|
6GK7 243-2AX01-0XA0 |
CP 243-2 AS-Interface master |
|
6ES7 241-1AA22-0XA0 |
EM 241 Modem |
|
6GK7 243-1EX00-0XE0 |
CP 243-1 Industrial Ethernet |
|
6GK7 243-1GX00-0XE0 |
CP 243-1 IT HTTP server, FTP client, FTP server,8 MB flash file system |
|
6NH9720-3AA00 |
GSM/GPRS modem SINAUT MD |
|
6NH9860-1AA00 |
GSM/GPRS modem antenna ANT |
|
Specific expansions |
|
|
6ES7 231-7PB22-0XA0 |
Expension RTD 2 AI |
|
6ES7 231-7PC22-0XA0 |
Expension RTD 4 AI |
|
6ES7 231-7PD22-0XA0 |
Expension TC 4 AI |
|
6ES7 231-7PF22-0XA0 |
Expension TC 8 AI |
|
6ES7 253-1AA22-0XA0 |
Expension Positioning module |
|
7MH4930-0AA01 |
Expension SIWAREX MS weighing module for connecting one scale |
|
Accessories |
|
|
6ES7 291-8BA20-0XA0 |
Battery cartridge |
|
6ES7 291-8GF23-0XA0 |
Memory cartridge, 64 KB |
|
6ES7 291-8GH23-0XA0 |
Memory cartridge, 256 KB |
|
6ES7 297-1AA23-0XA0 |
Real-time clock with battery cartridge |
|
6ES7 290-6AA20-0XA0 |
Extension cable for expansion modules, 0.8 m |
|
6ES7 901-3CB30-0XA0 |
PC/PPI cable, RS 232/485 cable for PC/laptop/modem/etc. to S7-200, max. 187.5 kbit/s,Multimaster, ASCII, Freeport |
|
6ES7 901-3DB30-0XA0 |
PC/PPI cable, USB/485 cable for PC/laptop to S7-200, max. 187.5 kbit/s, Multimaster |
|
6ES7 901-0BF00-0AA0 |
MPI cable (5 m) |
|
6ES7 901-3EB10-0XA0 |
TD 100C |
|
6EP1 332-2BA10 |
SITOP smart 2.5 A |
|
6EP1 333-2AA01 |
SITOP smart 5 A |
|
6EP1 334-2AA01 |
SITOP smart 10 A |
|
6ES7 272 1BF00 7AA0 |
Blank template sheets for the front panel of the TD 100C |
|
6ES7 272-1AF00-7AA0 |
Blank template sheets for the front panel of the TD 200C |
|
6AV6 671-0AP00-0AX0 |
Blank template sheets for the front panel of the TD 400C |
|
7MH4 702-8CA |
SIWATOOL cable for PC/laptop to SIWAREX MS weighing module |
|
6ES5 728-8 MA11 |
Grounding terminal for SIWAREX MS weighing module, 10 pcs./unit |
|
HMI |
|
|
6ES7 272-1BA10-0YA0 |
TD 100C text display |
|
6ES7 272-0AA30-0YA0 |
TD 200 text display, |
|
6ES7 272-1AA10-0YA0 |
TD 200C text display |
|
6AV6 640-0AA00-0AX1 |
TD 400C text display |
|
6AV6 640-0BA11-0AX0 |
OP 73micro, operator panel, 3" |
|
6AV6 640-0CA11-0AX0 |
TP 177micro, touch panel, 5.7" |
|
Software |
|
|
6ES7 810-2CC03-0YX0 |
STEP 7-Micro/WIN V4.0 |
|
6ES7 810-2CC03-0YX3 |
STEP 7-Micro/WIN V4.0 |
|
6ES7 830-2BC00-0YX0 |
STEP 7-Micro/WIN |
|
6AV6 610-0AA01-2CA8 |
WinCC flexible 2007 |
|
6ES7 840-2CC01-0YX0 |
S7-200 PC Access V1.0 OPC server software |
|
6ES7 840-2CC01-0YX1 |
S7-200 PC Access V1.0 OPC server software |
|
7MH4 930-0AK01 |
SIWAREX MS |
|
6NH9910-0AA10-0AA3 |
SINAUT Micro SC 8 OPC Server for GPRS communication with S7-200 |
|
6NH9910-0AA10-0AA6 |
SINAUT Micro SC 64 OPC Server for GPRS communication with S7-200 |
|
6NH9910-0AA10-0AA8 |
SINAUT Micro SC 256 OPC Server for GPRS communication with S7-200 |
|
6ES7298-0AA20-0BA3 |
Complete systems SIMATIC S7-200 |
|
6AV6 650-0BA01-0AA0 |
OP 73micro starter package |
|
6AV6 650-0DA01-0AA0 |
TP 177micro starter package |
