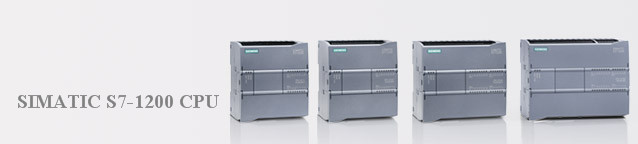

S7-1200 CPUs: Interplay makes the difference
The new modular SIMATIC S7-1200 controller is at the core of our new offering for simple but highly precise automation tasks. The SIMATIC S7-1200 controller is modular and compact, versatile, a secure investment, and is powerfully fit for a full range of applications.
A scalable and flexible design, a communication interface that fulfills the highest standards of industrial communication and a full range of powerful integrated technology functions make this controller an integral part of a complete and comprehensive automation solution.
The optimized performance of our SIMATIC HMI Basic Panels, designed for seamless compatibility with this new controller and the powerfully integrated engineering system, ensures simplified development, fast start-up, precise monitoring and the highest level of usability. It‘s the interplay between these products and their innovative features that give you an unprecedented level of efficiency for small automation systems.
|
|
Model Code
|
CPU 1211C
|
CPU 1212C
|
CPU 1214C
|
|
|
|
|
|
|
Integrated
|
25 kbyte
|
25 kbyte
|
50 kbyte
|
|
Bit operations
|
0.1 μs
|
0.1 μs
|
0.1 μs
|
|
Digital inputs
|
6
|
8
|
14
|
|
Digital Output
|
4
|
6
|
10
|
|
Analog Input
|
2
|
2
|
2
|
|
Dimensions
|
90x100x75
|
90x100x75
|
110x100x75
|
|

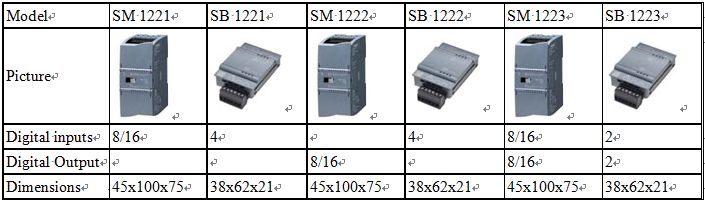

Digital modules
Description
"Digital inputs as supplement to the integral I/O of the CPUs For flexible adaptation of the controller to the relevant task
For subsequent expansion of the system with additional inputs " |
| |
 |
| |
Analog modules
Description
"Analog inputs for SIMATIC S7-1200
With extremely short conversion times For connecting analog actuators and sensors without additional amplifiers For solving even more complex automation task" |
|
|
| |
| |
SM 1231
|
SM 1232
|
SB 1232
|
SM 1234
|
SM 1231
|
SM 1231 RTD
|
| |
|
|
|
|
|
|
| Product type designation |
|
|
|
|
Thermocouple
|
RTD signal
|
| Analog Input |
4/8
|
2/4
|
1
|
4
|
4
|
4
|
| Analog Output |
|
|
|
2
|
|
|
| Dimensions |
45x100x75
|
45x100x75
|
38x62x21
|
|
71.2x80x62
|
|
|
| |
Communication
"SIMATIC S7-1200 Communication
The new SIMATIC S7-1200 is equipped with an integrated PROFINET interface. Up to 3 Communication Modules can be added to any of the SIMATIC S7-1200 CPUs. " |
| |
| |
CM 1241
|
CSM 1277
|
| |
|
|
| Data transmission |
10/100Mbit/s
|
|
| Connector |
1 x 9-pin D-sub, female
|
|
| Dimensions |
30x100x75
|
|
|
| |

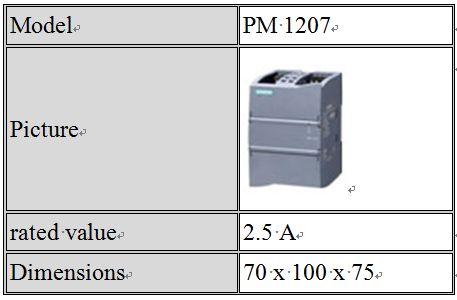

| Power supplies |
| |
|
ORDERING
|
|
Part
|
Description
|
|
CPU
|
|
6ES7 211-1AD30-0XB0
|
CPU 1211C DC/DC/DC
|
|
6ES7 211-1BD30-0XB0
|
CPU 1211C AC/DC/Relay
|
|
6ES7 211-1HD30-0XB0
|
CPU 1211C DC/DC/Relay
|
|
6ES7 212-1AD30-0XB0
|
CPU 1214C DC/DC/DC
|
|
6ES7 212-1BD30-0XB0
|
CPU 1212C AC/DC/Relay
|
|
6ES7 212-1HD30-0XB0
|
CPU 1212C DC/DC/Relay
|
|
6ES7 214-1AE30-0XB0
|
CPU 1214C DC/DC/DC
|
|
6ES7 214-1BE30-0XB0
|
CPU 1214C AC/DC/Relay
|
|
6ES7 214-1HE30-0XB0
|
CPU 1214C DC/DC/Relay
|
|
Digital
|
|
6ES7 221-1BF30-0XB0
|
Expension 8 DI
|
|
6ES7 221-1BH30-0XB0
|
Expension 16 DI
|
|
6ES7 222-1BF30-0XB0
|
Expension 8 DO
|
|
6ES7 222-1BH30-0XB0
|
Expension 16 DO
|
|
6ES7 222-1HF30-0XB0
|
Expension 8 DI (Relay)
|
|
6ES7 222-1HH30-0XB0
|
Expension 16 DI (Relay)
|
|
6ES7 223-1BH30-0XB0
|
Expension 8 DI,8 DO
|
|
6ES7 223-1BL30-0XB0
|
Expension 16 DI,16 DO
|
|
6ES7 223-1PH30-0XB0
|
Expension 8 DI,8 DO (Relay)
|
|
6ES7 223-1PL30-0XB0
|
Expension 16 DI,16DO (Relay)
|
|
Analog
|
|
6ES7 231-4HD30-0XB0
|
Expension 4 Al
|
|
6ES7 232-4HB30-0XB0
|
Expension 2 AO
|
|
6ES7 234-4HE30-0XB0
|
Expension 4 AI,2 AO
|
|
Communication
|
|
6ES7 241-1AH30-0XB0
|
CM 1241 RS232
|
|
6ES7 241-1CH30-0XB0
|
CM 1241 RS485
|
|
